Product Details:
|
| Model NO.: | LM1545 | Structure Type: | Desktop |
|---|---|---|---|
| Laser Classification: | CO2 | Laser Technology: | CO2 |
| Transport Package: | Wooden Box, Wooden Pallet | Specification: | 4500*1500mm |
| Trademark: | RuiYi Aluminum | Origin: | China |
| HS Code: | 8456110090 | Production Capacity: | 1000 Ton Per Day |

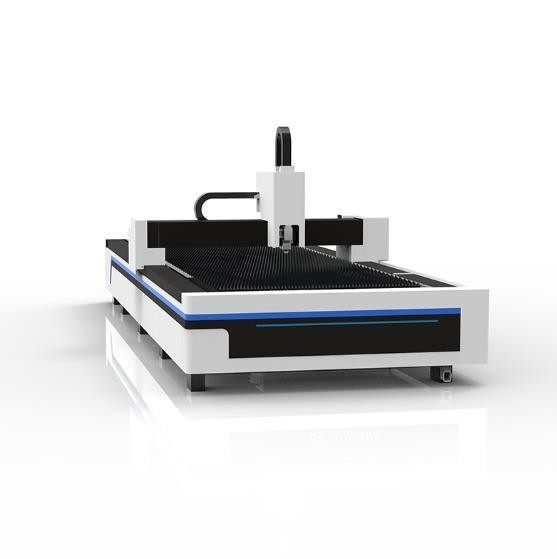

Large format laser cutting machine, suitable for a variety of machinery manufacturing processing industry, to achieve laser cutting large format, high power, high precision and other cutting, through rapid positioning and focusing, to improve cutting efficiency.
| Model | LM1545 Fiber Laser Cutting Machine |
| Laser power | 1kw/1.5kw/2kw/3kw(optional) |
| Working area for metal sheet | 4500*1500mm |
| Y-axis stroke | 4500mm |
| X-axis stroke | 1500mm |
| Z-axis stroke | ±0.03mm |
| X/Y axis reposition accuracy | ±0.02mm |
| Max. Moving speed | 80m/min |
| Maximum acceleration | 1.0G |
| Max. Working capacity of sheet table | 900kg |
| Specified voltage and frequency | 380V/50Hz/60Hz/60A |
