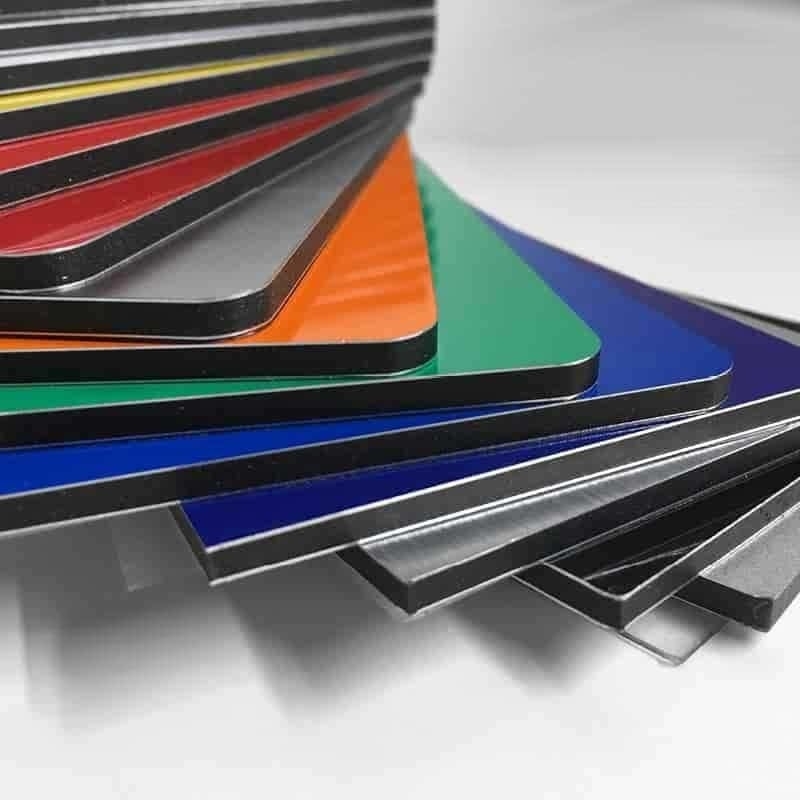

A2 or B1 Fireproof Aluminum Composite Panel

PVDF ACP Aluminum Composite Panels

1. Dimensions
Width:1000mm,1220mm 1250mm,1500mm,1550mm, 1570mm ,2000mm
Length :2440mm, 3200mm,4000mm 5000mm 6000mm,or customized
Thickness : 2mm, 3mm, 4mm, 5mm, 6mm,8mm,10mm
Thickness of ALU-layer : 0.08mm,0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.25mm,0.3mm,0.35mm,0.4mm,0.45mm,0.5mm
Inner Core Normal non toxic PE core, one side unbroken plastic, two side unbroken plastic, virgin LDPE, fireproof material
Color : Solid color, metallic color, brush color, mirror, marble, wooden color, glossy
Brand: customized
Surface : PE coating , PVDF coating, NANO, Brush surface, mirror surface,marble.
Thickness of film :0.07mm,0.09mm
FCL :1220*2440*4mm 1200 sheets in 20 feet container;

Non-standard sizes and special colors are available, according to customers' requests
2. Standard: according to GB/T 17748-2008 standard

3. Basic Material
1) front side: aluminum alloy sheet coated with fluoro-carbon resin(PVDF) or polyester resin (PE)
roasting painting
2) Core material: nontoxic polyethylene, PE, FR, LDPE
3) Back side: aluminum alloy sheet coated with polyester resin painting(PE)

4. Characters of bathroom wall covering panels
a) Super peeling strength
b) Excellent surface flatness and smoothness
c) Superior weather, corrosion, pollutant resistance
d) Even coating, various colors
e) Fireproof, excellent heat and sound insulation
f) Superior impact resistance
g) Lightweight and easy to process
h) Easy to maintain, self-clean
